Brand Name : GHC
Model Number : 48v3900wh
Certification : IEC/MSDS/ROHS/CE ETC
Place of Origin : CHINA
MOQ : 1 SET
Price : USD2500/SET
Payment Terms : Western Union, MoneyGram, L/C, T/T
Supply Ability : 10000 SETS PER MONTH
Delivery Time : 15 working days after payment
Packaging Details : inner box+bubbule bag+outer caton box
Warranty : 1 Year
Cycle life : 20000 times
Product name : 48V3900WH Telecom Battery Systems Telecommunication Battery 48v Deep Cycle Battery
Battery type : 4.2V21000F super capacitor battery cell
Weight : 27KGS
Color : Customized/Silver
Nominal capacity (ah) : 3900WH
Bms : BMS
Battery cell : super capacitor battery cells
Oem/odm : Available
Rated voltage : 48VDC
Operating temperature : -40 to +70 ℃
Lead time : 7days after payment
Shipment method : express/air/sea
Product Description
Product Name | GH 48V 3900Wh Moudle |
Serial parallel mode | 13S4P |
Rated Capacitance | 6500F |
Energy Storage | 3900Wh |
Rated Voltage | 48V |
Maximum Charge Voltage | 54.6V |
Minimum Discharge Voltage | 35.2 V |
Internal Resistance(AC) | ≤ 10 mOhm |
Rated Current | 80A |
Maximum Continuous Current | 160A |
Max. Peak Current | 240A |
Safety Test | DC1500V |
Operating Temperature Range | minus 20 to plus 60 ℃ |
Storage Temperature Range | minus 20 to plus 55 ℃ |
Cycle life | ≥ 20,000 |
Protection Class | IP30 |
Product Weight | 27kg |
Product Size ±5mm | 420x400x160mm |
Warranty Time | 5 years |
![]() |

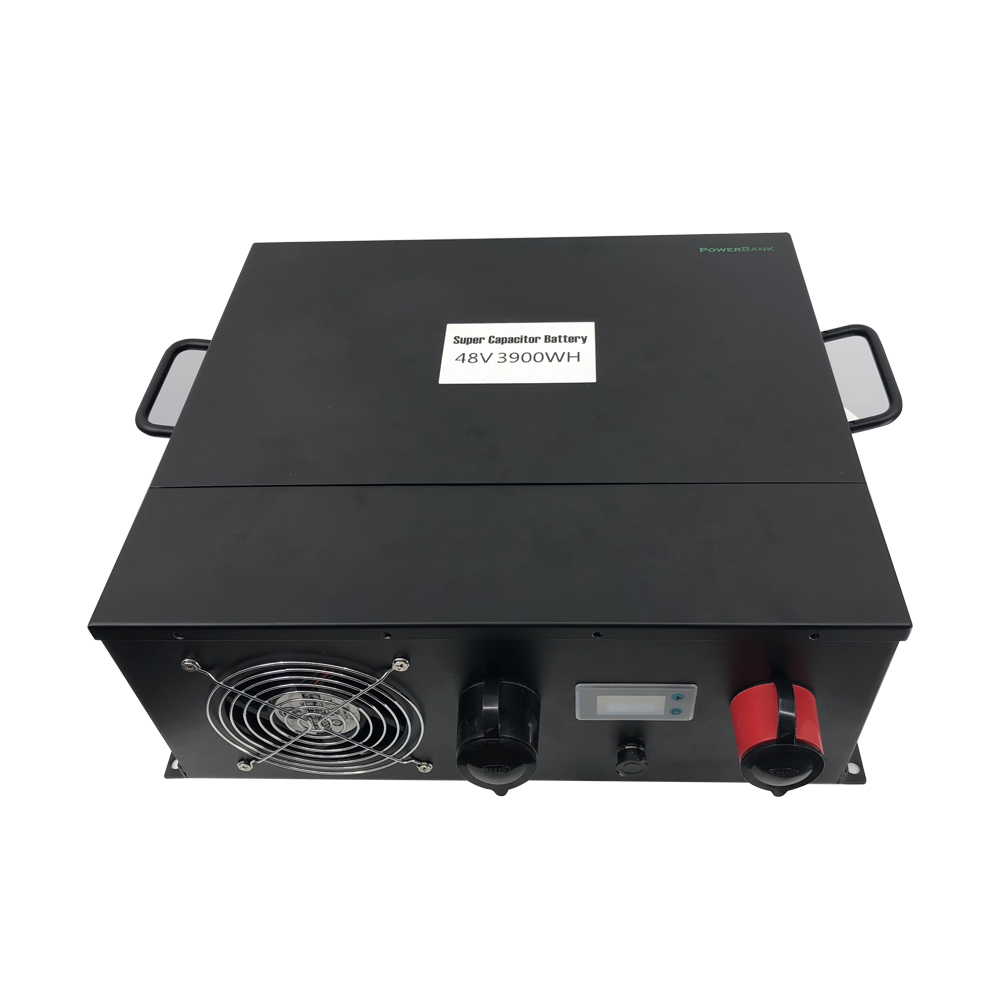

BMS Multiscene Telecom Battery Backup Systems 48v 3900wh Practical Images |
