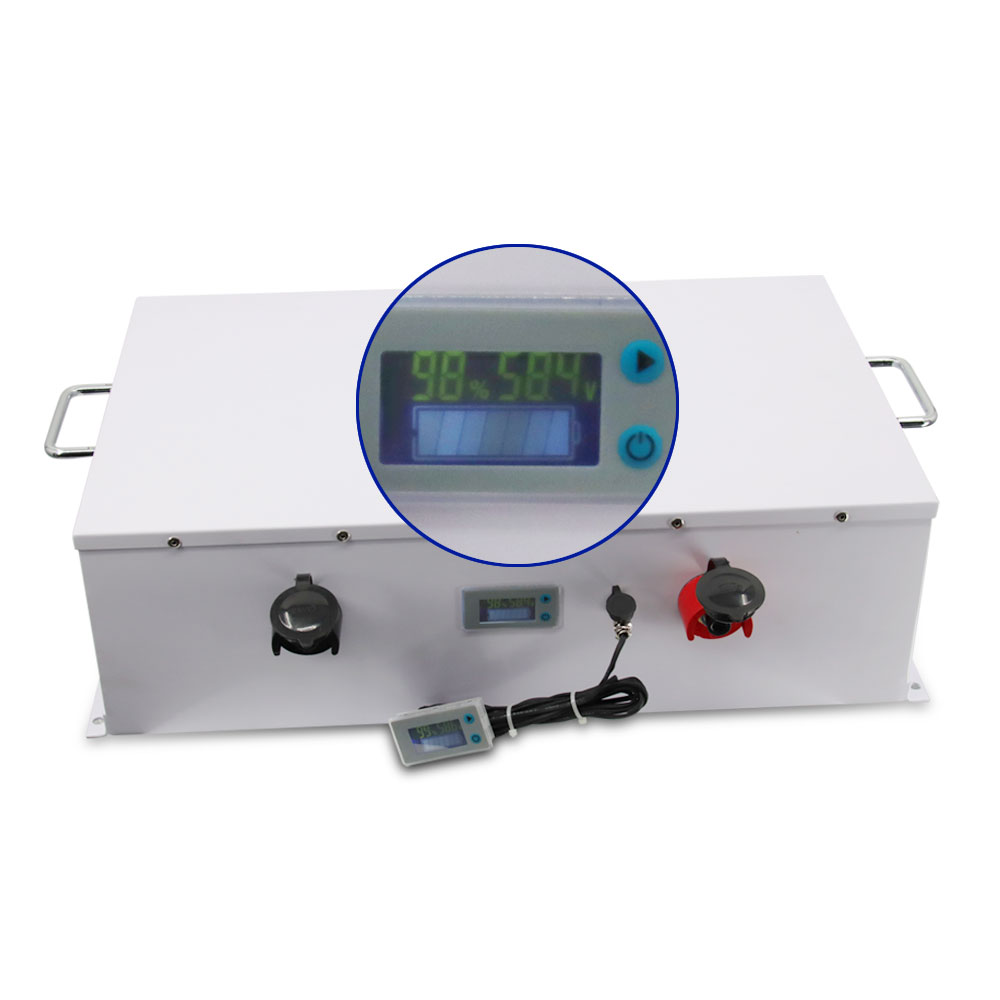

DC 1500V BMS Battery Management System 48V IP21 Over Current Protection

Dongguan City Gonghe Electronics Co., Ltd.
Contact Now

DC 1500V BMS Battery Management System 48V IP21 Over Current Protection

Brand Name : GH

Model Number : GH485250

Certification : IEC,UN38.3, UL certification

Place of Origin : China

MOQ : 1 set

Price : 1≤n<20 US$3,150.00 20≤n<300 US$2,880.00 300≤n US$2,750.00

Payment Terms : T/T, L/C

Supply Ability : 1200 sets per 20 month

Delivery Time : 30-45 days

Packaging Details : Carton or wooden box

Rated Capacitance : 100AH Customizable

Energy storage : 5250WH Customizable

Rated Voltage : 48V

Maximum Charge Voltage : 58.8V

Internal Resistance(AC ) : ≤4mΩ

Rated Current : 100A

Maximum Continuous discharge Current : 200A

Max. Peak Current : 300A

Safety Test : DC1500V

Operating Temperature Range : -20~70℃

Contact Now

BMS Battery Management System 48v Over-Current Protection

Gonghe Energy understands that battery-powered golf carts and electric vehicles have unique power requirements. Maintaining peak capacity over longer charge intervals means higher vehicle reliability and lower annual operating costs. That's why Gonghe Energy uses the company's unique patented invention. This creates the most efficient graphene battery in the industry, delivering more watt-hours and watt-hours per liter and per kilogram than any other conventional battery on the market.

since off the shelf BMS don't limit charging current, It is the job of the charger to limit charging current, NOT the BMS. BMS is for safety; to detect overcharge or uderdischarge and sometimes cell imbalance.
BMS can protect the battery cells and balance them. BMS has charger circuitry to charge the cells as well. If I apply the DC power input to BMS input it can distribute among cells and charge them appropriately. I only need some DC supply with BMS to charge batteries

BMS Protections

Balancing function for cells

Over temperature protection

Short-circuit protection
Over-current protection
Over-voltage protection
Over-discharge protection
Rated Capacitance
100AH
Energy storage
5250WH
Rated Voltage
48V
Maximum Charge Voltage
58.8V
Minimum Discharge Voltage
44V
Internal Resistance(AC )
≤4mΩ
Rated Current
100A
Maximum Continuous discharge Current
200A
Max. Peak Current
300A
Safety Test
DC1500V
Safety standards
QC/T741
Operating Temperature Range
-20~70℃
Storage Temperature Range
-0-45℃
Cyclelife
≥20000 CYC
Nominal Weight
41.5±2Kg
Protection Class
IP21

DC 1500V BMS Battery Management System 48V IP21 Over Current Protection
